| Material List | |||
| Sr | Part | QTY | Material |
| 1 | Body | 1 | CAST IRON |
| 2 | Disc | 1 | 304 |
| 3 | Seat Retainer | 1 | 304 |
| 4 | Seat | 1 | EPDM |
| 5 | Packing | 2 | PTFE + Graphite |
| 6 | Packing Gland | 1 | WCB |
| 7 | Pin | 1 | A3 |
| 8 | Yoke | 2 | A3 |
| 9 | Bearing Gland | 1 | A3 |
| 10 | Bolt | A3 | |
| 11 | Nut | A3 | |
| 12 | Stem | 1 | 2Cr13 |
| 13 | Stem Nut | 1 | Brass |
| 14 | Hand Wheel | 1 | Cast Iron |
| 15 | Valve Stem Protector | 1 | A3 |

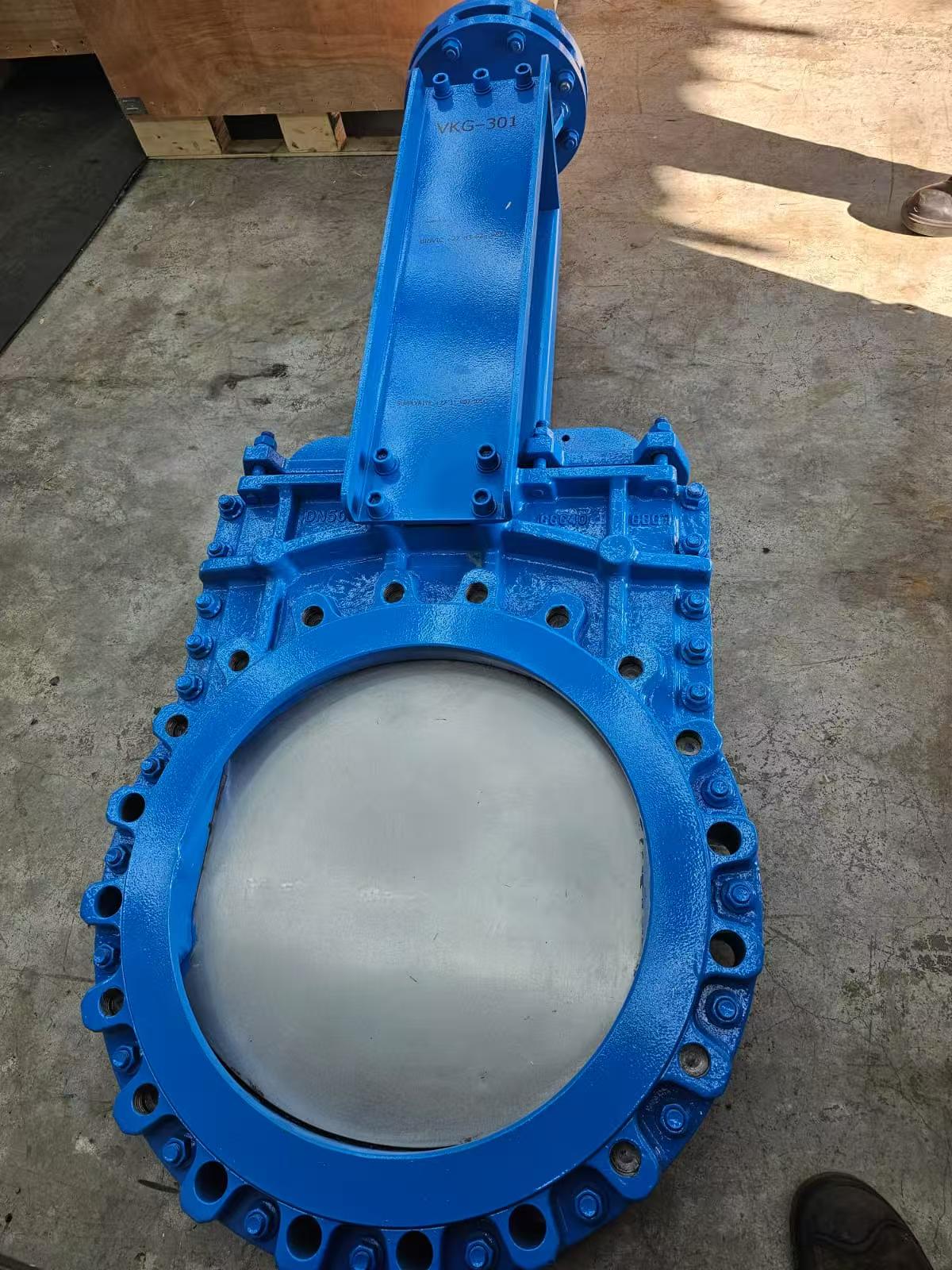

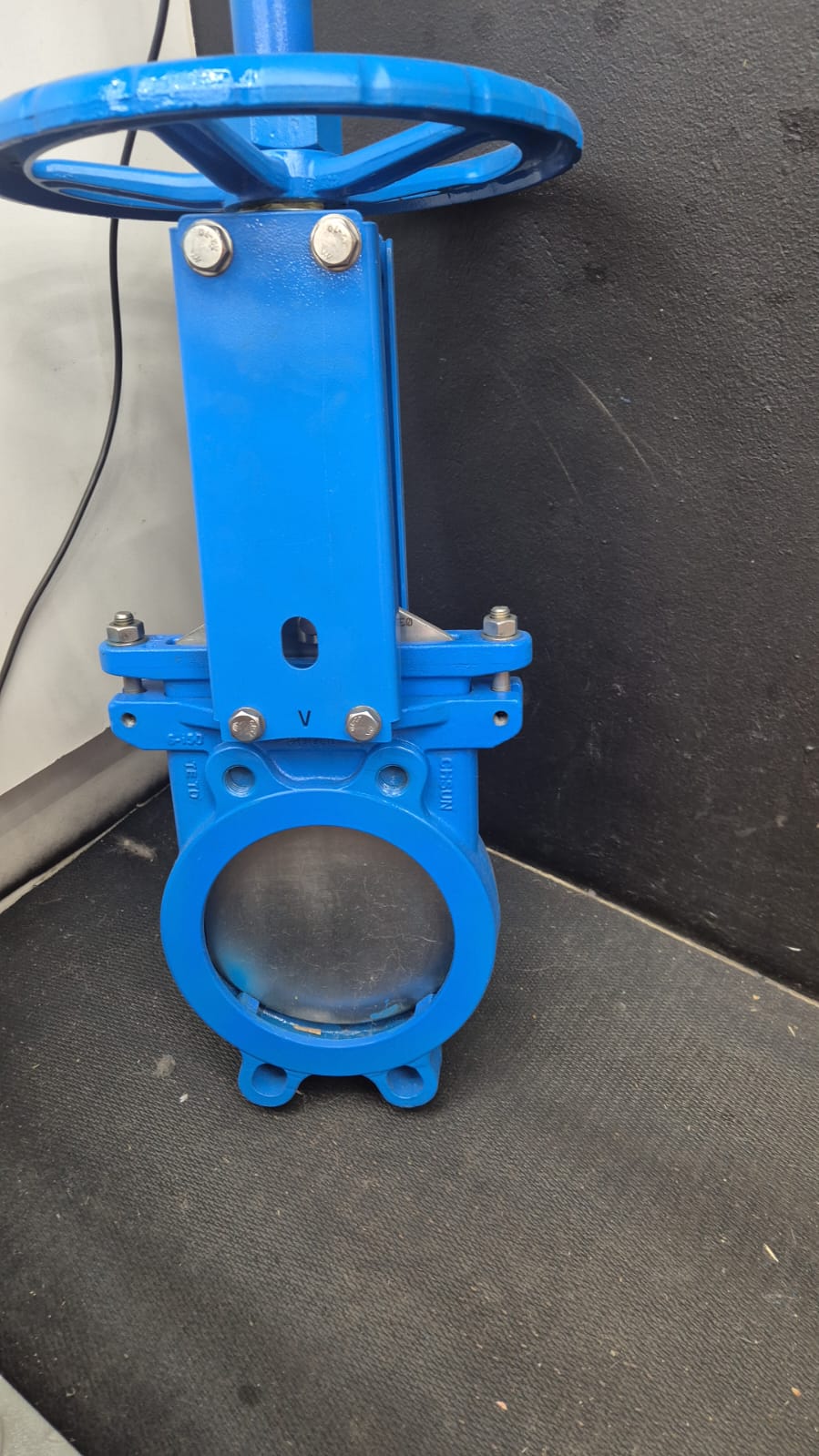

Cast Iron Body Knife Gate Valves PN10
Starting From
R1,950
In Stock
The Cast Iron Body Knife Gate Valve is a durable and high-performance solution designed for reliable flow control in demanding industrial applications. Built with a robust cast iron body and a stainless steel (304) disc, this valve ensures excellent strength, corrosion resistance, and long service life.
The EPDM seat provides tight sealing performance, while the PTFE + Graphite packing ensures smooth operation and leak prevention. The 2Cr13 stainless steel stem and brass stem nut enhance durability and operational efficiency. Designed for PN10 pressure rating, the valve is suitable for working temperatures ranging from -29°C to 120°C.
