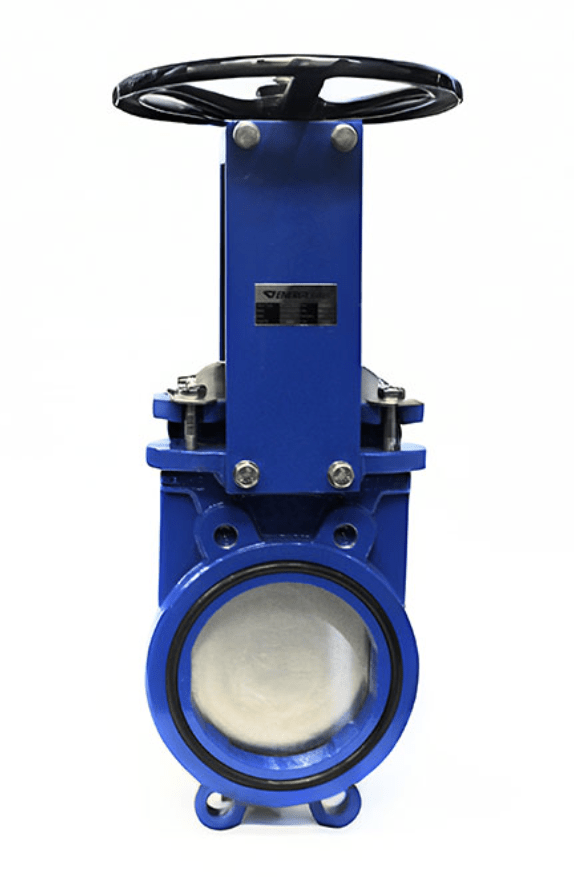

Bi-directional Wafer Knife Gate Valve
Bi-directional Wafer Knife Gate Valve

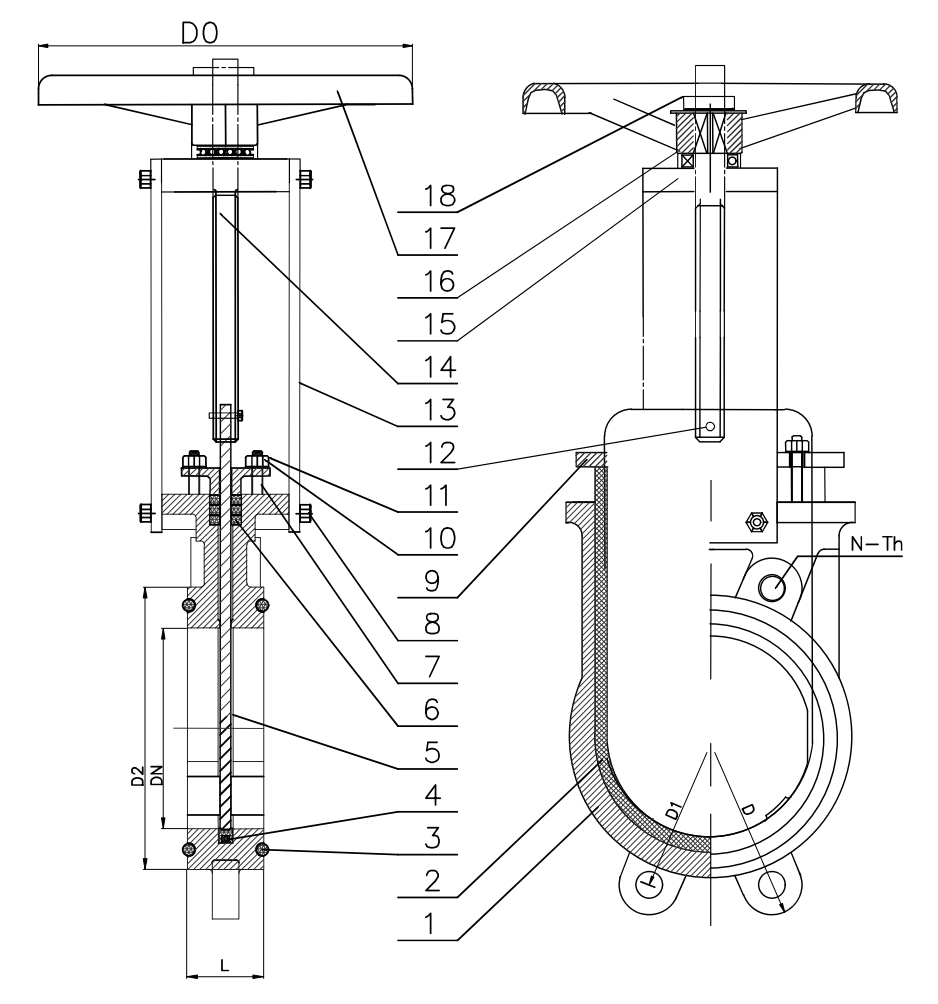

Material List
Item Part Material
1 Spindle Protection Tube Mild Steel – FBE Coated
2 Hand Wheel S.G Iron – FBE Coated
3 Grub Screw Stainless Steel
4 Thrust Bush DZR Brass
5 Locking Pin Stainless Steel 410 (Extra)
6 Yoke Plate Mild Steel – FBE Coated
7 Wiper Packing PTFE – Graphite Backing
8 Engineering Studs Stainless Steel
9 Deflector Cone Polyurethane Disc
10 Rubber Seal NBR Rubber, EPDM
11 Body S.G Iron – FBE Coated
12 Gate Stainless Steel 304 or 316
13 Seal Wiper Blade PTFE
14 Gland Cover Plate SG Iron
15 Rubber Boot NBR Rubber
16 Spindle Stainless Steel 410
17 Bearings Stainless Steel
18 Head Thrust Nut S.G Iron – FBE Coated

Bi-Directional Wafer Knife Gate Valve

Starting From

In Stock

FEATURES

  • Polyurethane Deflectors
  • Ductile Iron Body
  • Fusion Bonded Epoxy (FBE)
  • 304SS Gate
  • NBR Seat
  • Polyurethane Deflectors
  • PN10
  • Hand Wheel or Pneumatic
  • Operated
Add your quote
Dimensions
DN L H W D Mass (kg)
50 43 337 180 125 8
80 46 400 250 160 11
100 52 466 250 180 23
150 56 633 300 240 35
200 60 744 350 295 45
250 68 940 400 350 68
300 78 1087 500 400 155
Material List
Item Part Material
1 Spindle Protection Tube Mild Steel – FBE Coated
2 Hand Wheel S.G Iron – FBE Coated
3 Grub Screw Stainless Steel
4 Thrust Bush DZR Brass
5 Locking Pin Stainless Steel 410 (Extra)
6 Yoke Plate Mild Steel – FBE Coated
7 Wiper Packing PTFE – Graphite Backing
8 Engineering Studs Stainless Steel
9 Deflector Cone Polyurethane Disc
10 Rubber Seal NBR Rubber, EPDM
11 Body S.G Iron – FBE Coated
12 Gate Stainless Steel 304 or 316
13 Seal Wiper Blade PTFE
14 Gland Cover Plate SG Iron
15 Rubber Boot NBR Rubber
16 Spindle Stainless Steel 410
17 Bearings Stainless Steel
18 Head Thrust Nut S.G Iron – FBE Coated
