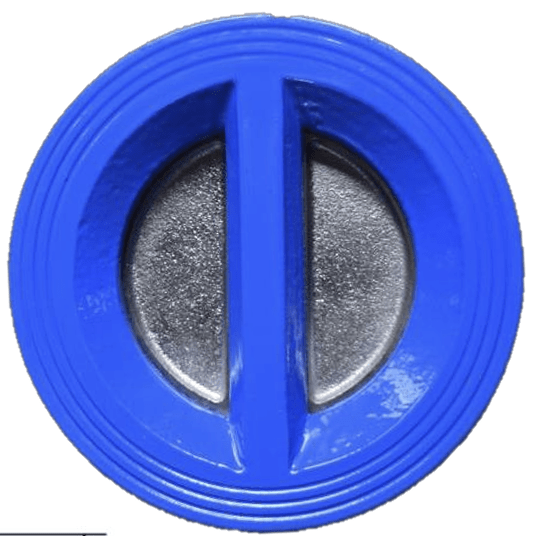

Wafer Double Door Check Valve
Wafer Double Door Check Valve
Material List
Item Part Material
1 Disc Stainless Steel (304SS or 316SS)
2 Spring Stainless Steel
3 Gasket NBR Rubber
4 Body Cast Iron (GG 25), Epoxy Powder Coated

Wafer Double Door Check Valves – PN16

Starting From

R560

In Stock

FEATURES

  • Application:
  • Check valves are used for preventing back
  • flow of liquid medium in pipes. The valves
  • close automatically with the return flow of
  • the liquid medium.
  • PN16
Clear
Add your quote

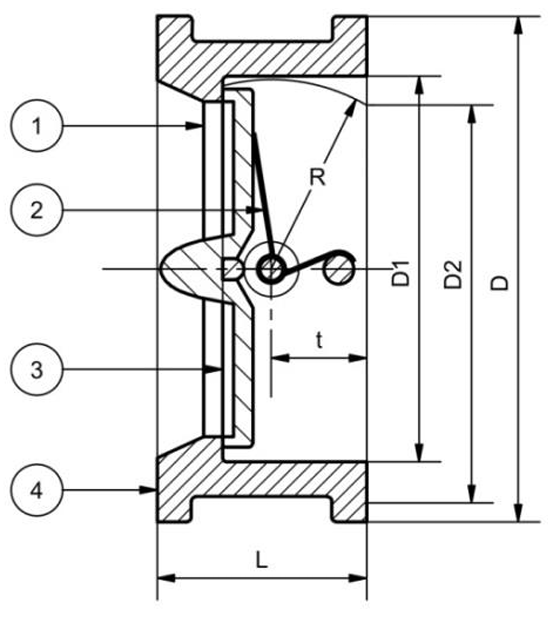

Dimensions
Size D D1 D2 L R T Mass (kg)
mm Inch
50 2″ 107 65 43.3 43 28.8 19 2
65 2.5″ 127 80 60.2 46 36.1 20 2
80 3″ 128 94 66.4 64 43.4 28 4
142
100 4″ 162 117 90.8 64 52.8 27 4
125 5″ 192 145 116.9 70 65.7 30 7
150 6″ 218 170 144.6 76 78.6 31 8
200 8″ 273 224 198.2 89 104.4 33 15
250 10″ 328 265 233.7 114 127 50 26
300 12″ 378 310 283.9 114 140 43 35
350 14″ 438 360 332.9 127 152 45 55
400 16″ 489 410 381 140 152 52 73
450 18″ 539 450 419.9 152 217.8 58 81
555 81
500 20″ 617 505 467.8 152 241 58 124
600 24″ 700 624 572.6 178 295.4 73 187
700 28″ 804 720 680 229 338.5 98 219
800 32″ 911 825 744 241 385.5 100
900 36″ 1011 927 241 455.5 100 435
Material List
Item Part Material
1 Disc Stainless Steel (304SS or 316SS)
2 Spring Stainless Steel
3 Gasket NBR Rubber
4 Body Cast Iron (GG 25), Epoxy Powder Coated
