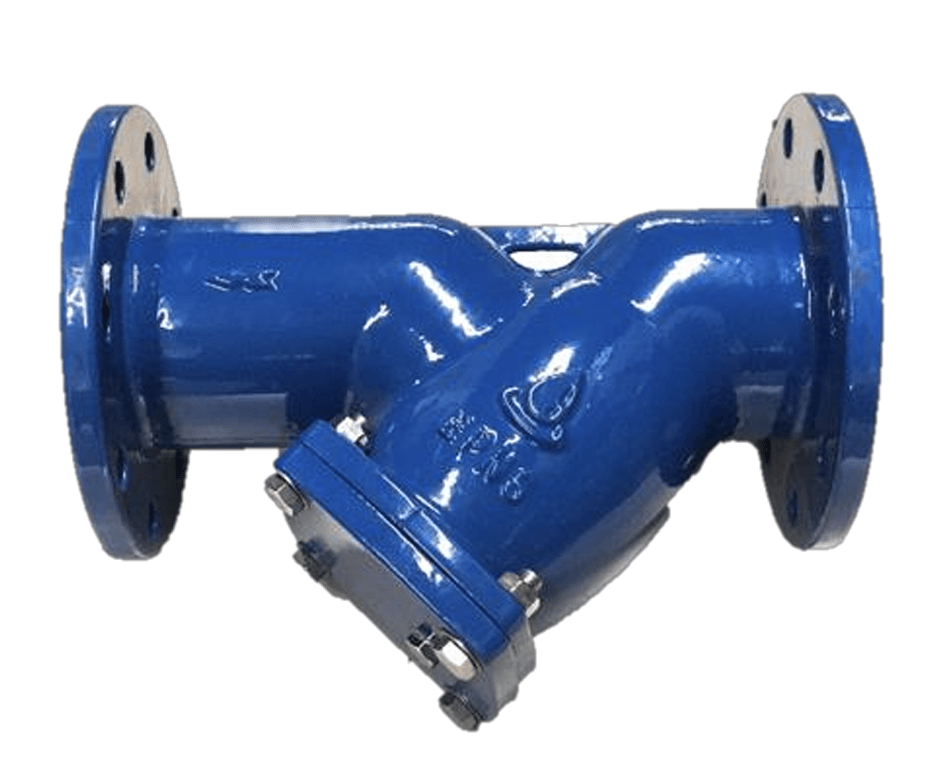

Flanged Y-Strainer
Flanged Y-Strainer
Material List
Item Part Material
1 Body Ductile Iron FBE Coated
2 Screen Mesh 304 Stainless Steel
3 Gasket NBR O-Ring
4 Blow off plug Stainless Steel
5 Bonnet Ductile Iron FBE Coated

Flanged Y-Strainer PN16

Starting From

R1,125

In Stock

FEATURES

  • Face to Face dimensions according to
  • DIN3202, F1
  • Flange dimensions according to DIN2501
  • PN 10/PN16
  • Nominal Pressure PN10/PN16
  • The mesh of wire screen or the hole
  • dimensions of the perforated screen can
  • be as per the customer’s requirements
  • Bonnet and body metal to metal with o-ring
  • type seal
  • Straight through nut & bolt – easy
  • disassembly and assembly for cleaning
  • screen
Clear
Add your quote
Dimensions
DN L D D1 D2 b Z-ɸd H f Mass (kg) Mesh Thickness Mesh Size
50 230 165 125 102 18 4-18 168 3 7 0.6 1.5 x 2.5
65 290 185 145 122 18 4-18 178 3 9 0.6 1.5 x 2.5
80 310 200 160 138 20 8-18 215 3 12 0.6 1.5 x 2.5
100 350 220 180 158 20 8-18 249 3 15 0.6 1.5 x 2.5
125 400 250 210 188 22 8-18 268 3 26 0.8 3 x 5.5
150 480 285 240 212 22 8-23 292 3 30 0.8 3 x 5.5
200 600 340 295 268 24 12-23 316 3 48 1 3 x 5.5
250 730 405 355 320 30 12-28 428 3 96 1 3 x 5.5
300 850 460 410 370 30 12-28 492 4 145 1 3 x 5.5
Material List
Item Part Material
1 Body Ductile Iron FBE Coated
2 Screen Mesh 304 Stainless Steel
3 Gasket NBR O-Ring
4 Blow off plug Stainless Steel
5 Bonnet Ductile Iron FBE Coated
