| Specification |
| Item |
Part |
Material/Type |
| 1 |
Tank Shell / Body |
Stainless Steel 304L or 316L |
| 2 |
Top Cover / Roof |
Stainless Steel 304L or 316L |
| 3 |
Bottom Plate |
Stainless Steel 304L or 316L |
| 4 |
Inlet Nozzle |
Flanged or BSP, or Dairy Fittings |
| 5 |
Outlet Nozzle |
Flanged or BSP, or Dairy Fittings |
| 6 |
Capacity |
100L to 1000L |
| 7 |
Manhole |
Hindged, Bolted or site glass |
| 8 |
Breather Vent |
Yes |
| 9 |
Bolts and Nuts |
Stainless Steel 304 or 316 |
| 10 |
Gaskets |
EPDM, PTFE or Viton |
| 11 |
Support Legs / Base Frame |
Stainless Steel 304L or 316L Round tubes |
| 12 |
Lifting Lugs |
If required Stainless Steel 304L or 316L |
| 13 |
Drain Connection |
If required, Stainless Steel 304L or 316L |
| Dimensions |
| Capacity |
Tank Type |
D |
H |
OH |
T |
Inlet / Outlet |
Manhole / Access |
Approx. Mass (kg) |
| L |
|
mm |
mm |
mm |
mm |
Inch |
mm |
|
| 100 |
Vertical Cylindrical |
450 |
650 |
900 |
3 |
1″ |
200 |
35 |
| 200 |
Vertical Cylindrical |
550 |
850 |
1100 |
3 |
1″ |
300 |
55 |
| 300 |
Vertical Cylindrical |
650 |
900 |
1200 |
3 |
1-1/2″ |
300 |
75 |
| 500 |
Vertical Cylindrical |
800 |
1000 |
1350 |
3 or 4.5 |
1-1/2″ |
400 |
105 – 140 |
| 750 |
Vertical Cylindrical |
900 |
1200 |
1600 |
4.5 |
2″ |
400 |
190 |
| 1000 |
Vertical Cylindrical |
1000 |
1300 |
1750 |
4.5 |
2″ |
450 |
240 |
D = Tank diameter, H = straight shell height, OH = overall height including support legs and top fittings, T = stainless steel plate thickness. Dimensions and mass are typical values and may vary depending on tank design, accessories, nozzle arrangement and customer requirements.

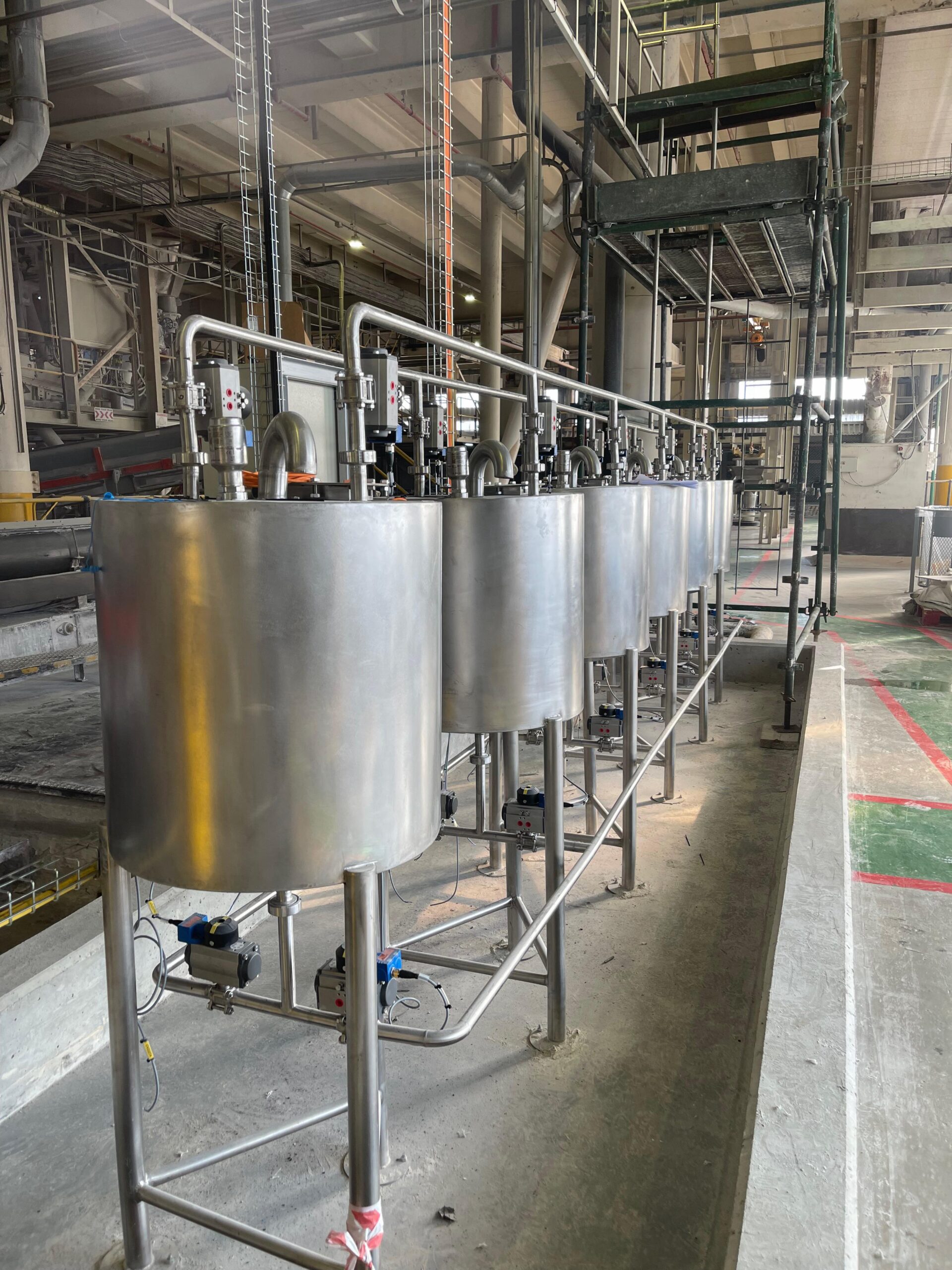

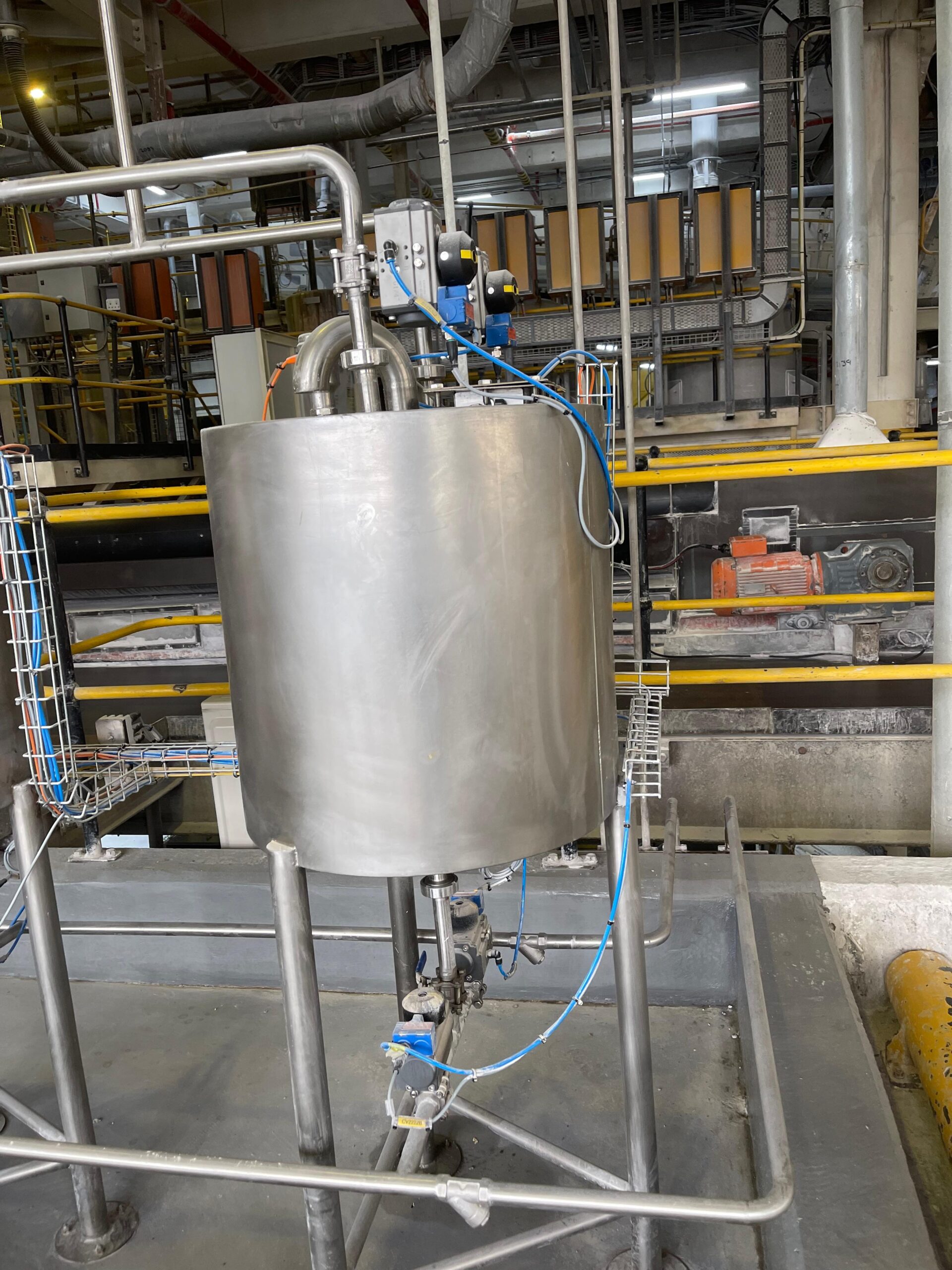

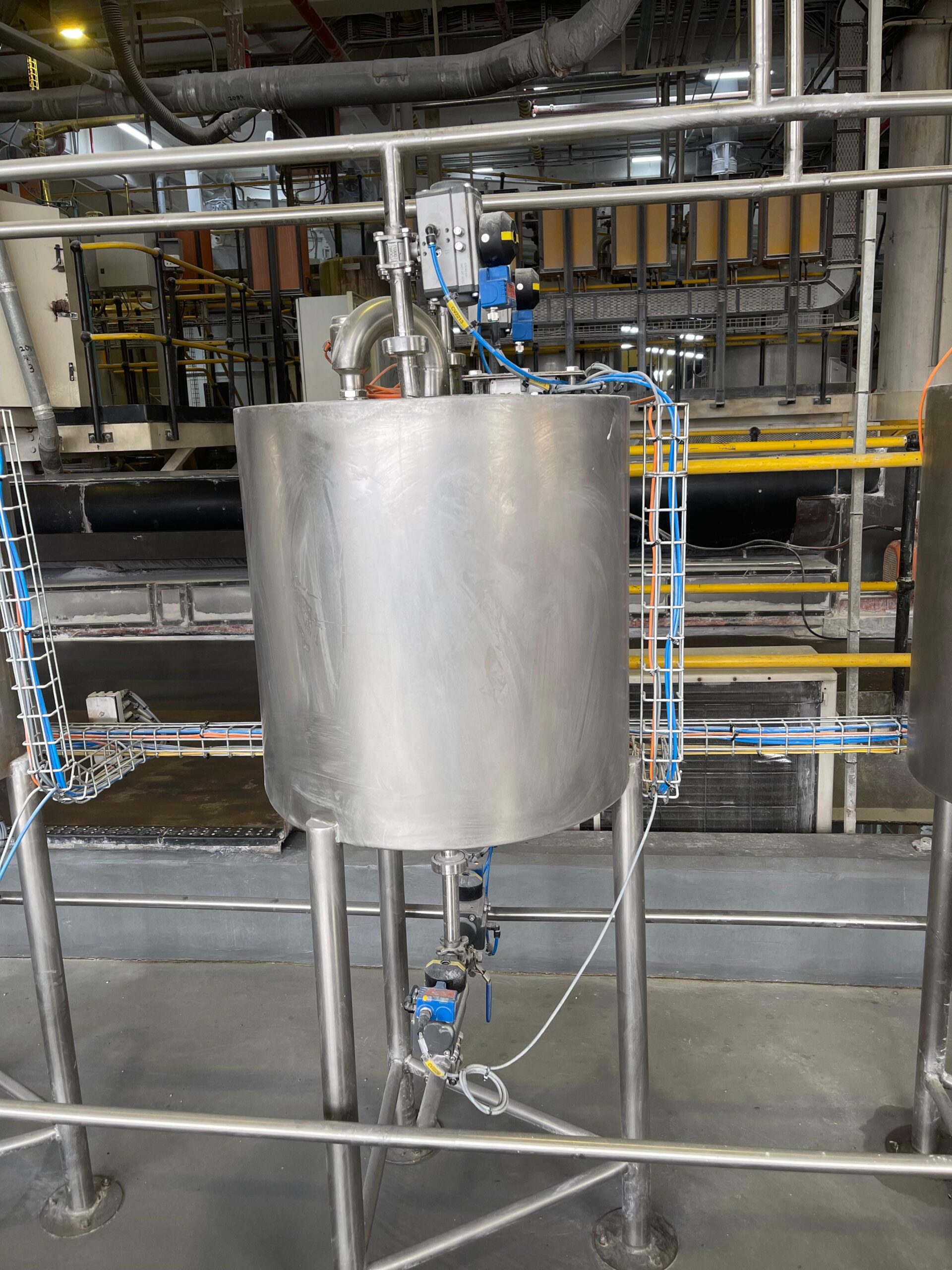

STORAGE TANK SPECIFICATION
- Material: Stainless steel 304L or 316L
- Water tank volume: From 100 L to 1000 L
- Stainless steel plate thickness: 3 mm, 4.5 mm, 6 mm
- Accessories: Flanged inlet and outlet, bolts, manholes, breather chimney
