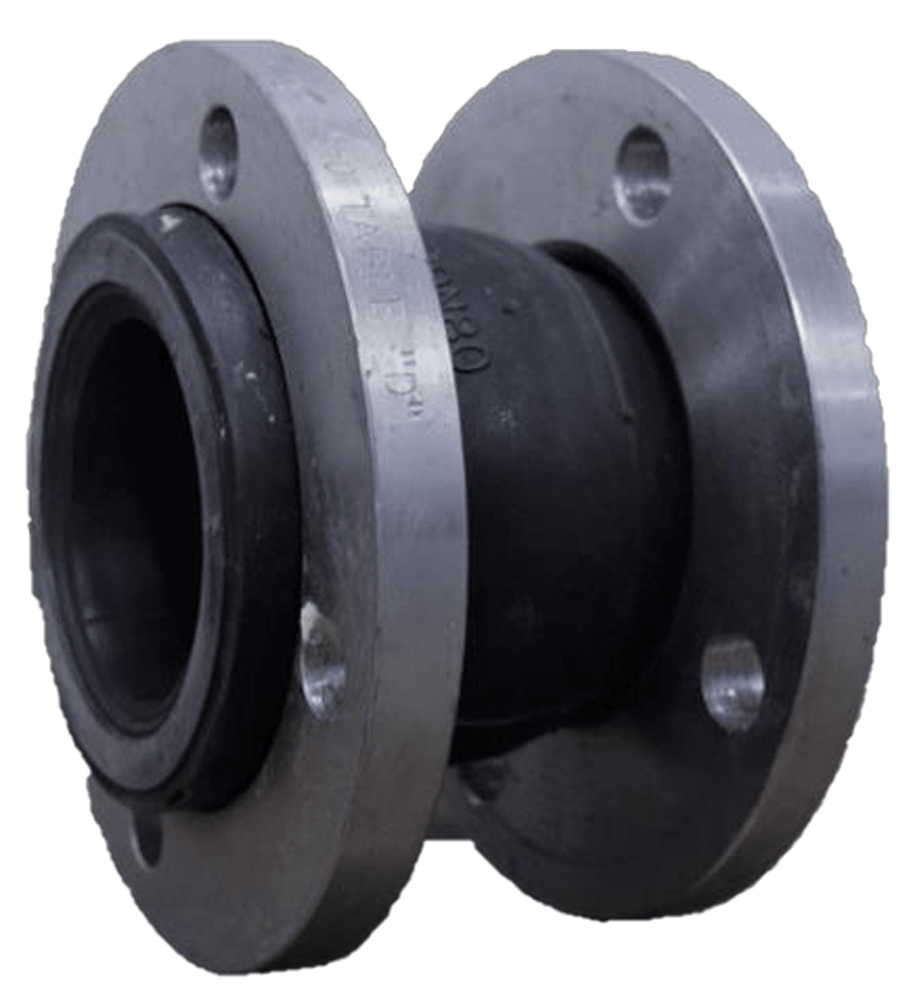

Rubber Bellow (Expansion Joint)

Starting From

R595

In Stock

FEATURES

  • Due to its good integral function, a flexible rubber joint is
  • widely used in several industries
  • It eliminates vibration in the line which alleviates stress on
  • the system
  • Small volume, light weight , good flexibility , easy to install
  • and low in maintenance
  • Dampens noise, helps to equalize inaccuracies during
  • assembly
Clear

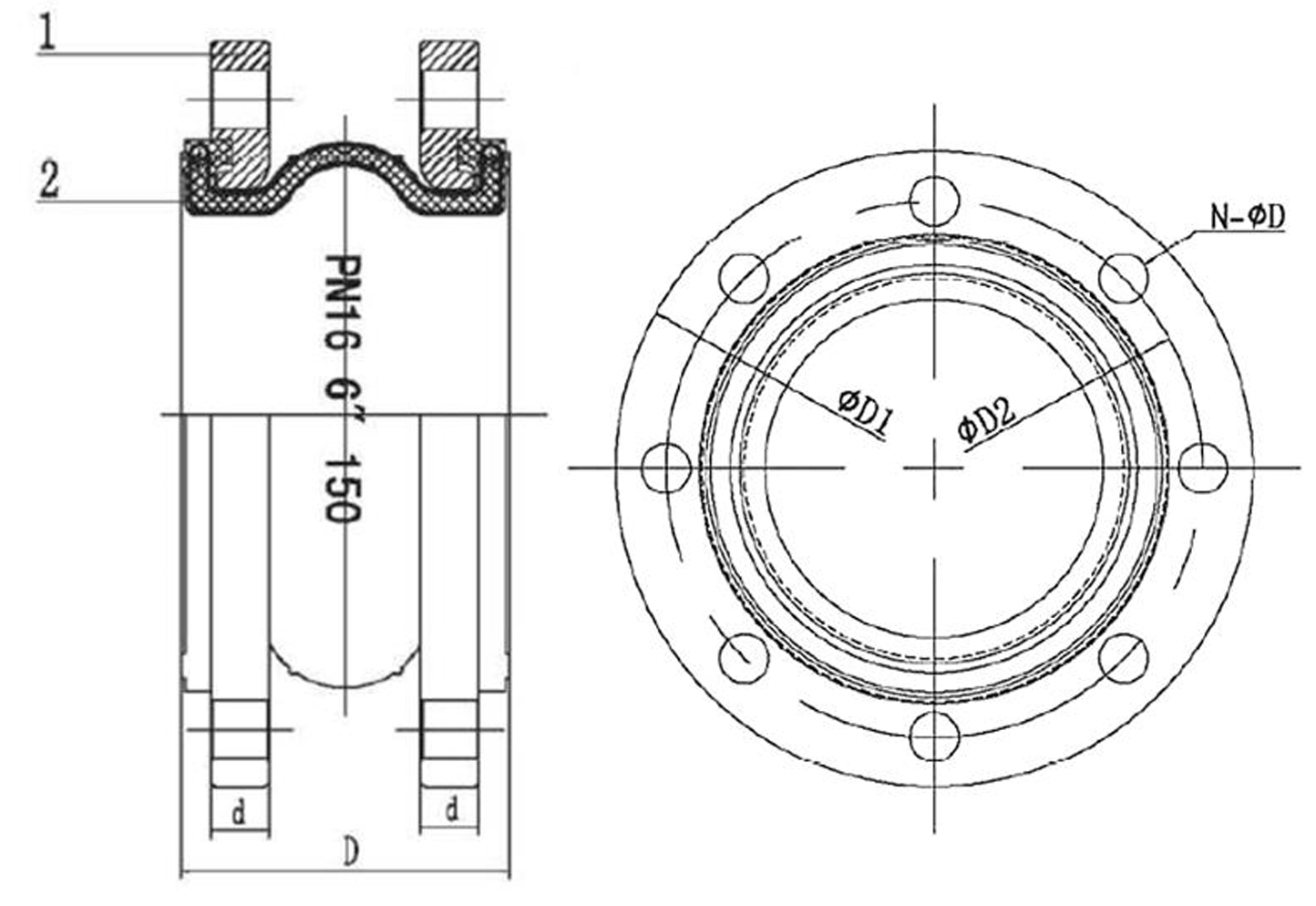

Dimensions / Specifications
DN D1 D2 N-D D d Axial Displacement Horizontal displacement (mm) Deflection angle Mass (Kg)
Extension Compression
50 165 125 4-18 105 20 7 10 10 15° 5.50
65 185 145 4-18 115 20 7 13 11 15° 6.70
80 200 160 8-18 135 22 8 15 12 15° 7.70
100 220 180 8-18 150 24 10 19 13 15° 9.40
125 250 210 8-18 165 26 12 19 13 15° 12.70
150 285 240 8-22 180 26 12 20 14 15° 15.80
200 340 295 12-22 210 30 16 25 22 15° 20.00
250 405 355 12-26 230 32 16 25 22 15° 29.22
300 460 410 12-26 245 32 16 25 22 15° 32.80
350 555 470 16-26 245 33 16 25 25 8° 38.5
400 580 525 16-26 245 35 16 25 25 8° 43
Material List
No Part Name Material
1 Flange WCB Q235-A
2 Sphere Reinforced EPDM
